Enclosure-
Feature / Benefit
- Design for the suitability for the pole, the beauty of the town and harmonic-environmental aerial line
- Reduction of the working hour and the safety by using one-touch catch clips
- Fiber Optic Protection, Prevention of tube-break off and insurance against risk of bend
- Prevention from vibration, movement by using aerial hanger to fix closure and aerial line together
-

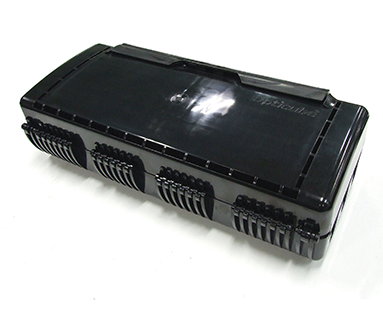

BS603B
Model BS603B Size (W X D X H) mm 420 X 180 X 100 mm Weight (kg) 2.5kg Inlet Port 6 Cable Dia (mm) 3~20 / 8~18 No. of splice trays 3 Tray capacity 24C (Max.48C) Splice capacity 72C (Max. 144C) Cable Fixing Method Sheath Clamp / H/S Tube
-
