Enclosure-
Feature / Benefit
- Reliable moisture-tight housing with hot-melt type sealing
- Ribbed body structure protects against impact and compression
- Efficient fiber management by splice tray holding structure
- Ease of use for closure assembly
- Easy clamping of tension member and grounding
-

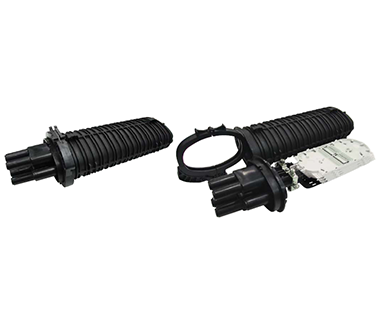

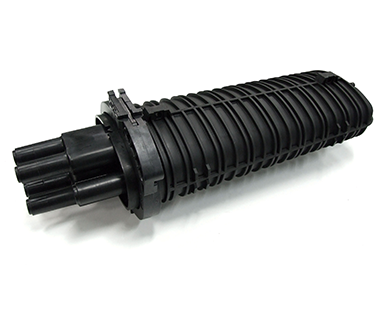

BS604C
Model BS604C
Size (W X D X H) mm 577 × 211 × 174 mm Weight (kg) 2.5 kg Inlet Port 6 (2 oval) Cable Dia (mm) ∅8 ~ ∅24 No. of splice trays 4 Tray capacity 24C (Max. 48C) Splice capacity 96C (Max. 192C) Cable Clamp Method Heat Shrinkable Tube
-
