Feature / Benefit
Paramaters Unit
1x4 1x8 1x16 1x32 Max.Insertion loss*₁ dB 7.3 10.7 13.9 17.2 Uniformity*₁ dB ≤0.5 ≤1.0 ≤1.4 ≤1.5 PDL dB ≤0.5 ≤0.25 ≤0.25 ≤0.3 Directivity*₁ dB ≥55 Return Loss*² dB ≥55 Operating Wavelength dB 1260 ∽ 1650 Fiber Type LWPE LWPE Storage Temperature ºC -40 ∽ +85 Operating Temperature ºC -40 ∽ +85 Package Dimension(L x W x H) mm 40x4x4 40x4x4 40x4x4 40x4x4 *¹ Without Connectors
*₂ For wavelength range 1600 ∽ 1650 nm, add insertion loss 0.5 dB for 1x4, 1x8, 1x16 splitter, 1.0dB or 1x32 splitter
-

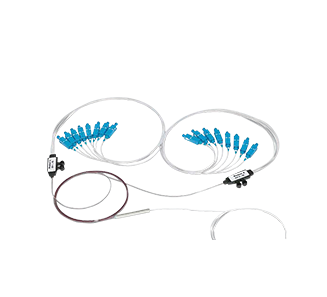

PLC Splitter / Fanout Splitter connector
- Very low insertion loss
- Broadband operation
- Low PDL
- Excellent uniformity
- Compact package
-
