Cleaver-
Feature / Benefit
- Ultra - precision Cleaving
- Cleaving Angle Deviation : less than 0.3
- Various cleaving length : Min, 1mm
- Various optical fiber possible : From 80 to 125
- Approx, 20,000 times cleaving available with Dlamond Chip Blade Head
- Cleaving more than 20,000 times with a fully charged battery.
-

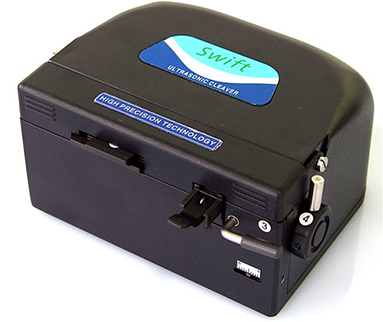

Ultrasonic Cleaver
Model Ultrasonic Cleaver Rated Voltage
DC 12V - 16.8V
Cleaving Length
Normal : 1mm - 15mm Optical Fiber
Buffer : 250um, 900um
Adjusted Clad : 80 - 125um, 200um(Option)
Cleaving Angle 90° + 0.3°
Body Size 120 x 90 x 65 mm
Weight 800g
Blade Life Time 20,000
Adaptor A Rated input Voltage : Battery Charger (JBL910A1602K01)
A Rated output Voltage : DC16.8V
Battery Polymer Lithium lon Battery 16.8V, 1050mAh
Cleaving more than 20,000 times with a fully charged battery
-
